Ball & Die Punching Unit

Engineered for Non-Stopping Webs

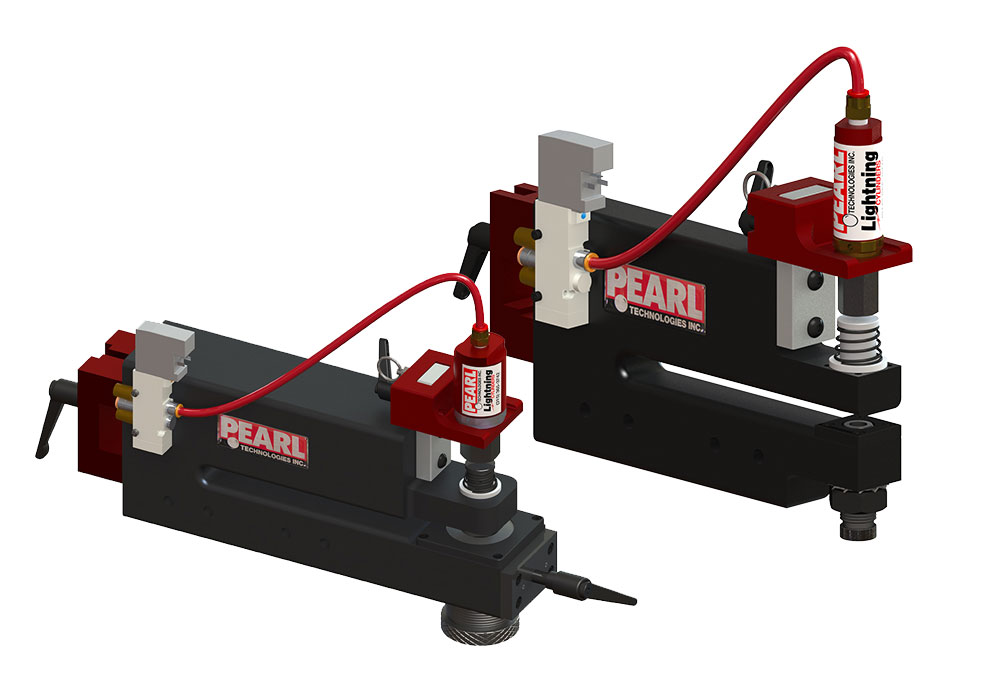

The Standard C-Frame Unit uses industry standard ball and dies as well as our own two-piece design. Our C-frame allows you to adjust die height, change the plunger and remove the air cylinder without any additional tools. The Larger Diameter C-Frame uses our custom two- piece low profile punch and die design.

Our Cross Web Ball and Die design allows for hole punching in the middle of continuous motion webs. It contains a built-in alignment system to ensure the balls are centered over the dies. The Cross Web Ball and Die can be placed anywhere across the web.

View Product Sheets

Engineered to Your Needs:

Optional pivot mount assembly available forretrofitting to existing units in the field
Optional slug removal system
Optional electrical and pneumatic controls
Custom designs

Side Rail Ball & Die

Adjustable throat depth. Available in 6”, 8” and 12” throat depths. Adjustable die height to allow for resharpening. Standard C-Frame: Max hole size 7/16″; Large Diameter: Max hole size 1-1/2″; Pivoting C-Frame: Max hole size 1-1/2″.

Download Data Sheet

Cross Rail Ball & Die

Accommodates punch diameters up to 2.5”. Built-in alignment system. Adjustable die height allows for resharpening. A Size Unit: Max Diameter .5″; B Size Unit: Max Diameter 1″; C Size Unit: Max Diameter 1.5″.

Download Data Sheet

Die Button & Ball Punches

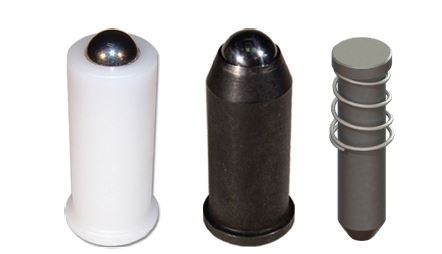

We offer two different style punch sets for ball and die. Performance punches offer a longer life and the best cut quality, which minimize line downtime. Value punches provide good cut quality and durability at an affordable price.

Ball Punches & Die Buttons Datasheet
