Flex Unit Punching Unit

One Unit, Multiple Punching Tasks!

Our innovative flexible design unit offers unique advantages over traditional punching, providing the ability to quickly change punch shapes and sizes. This allows film and pouch converters use of a single punching unit on several jobs. It’s as simple as bolting on a die insert and punch which universally fit the  “Flex Unit.”

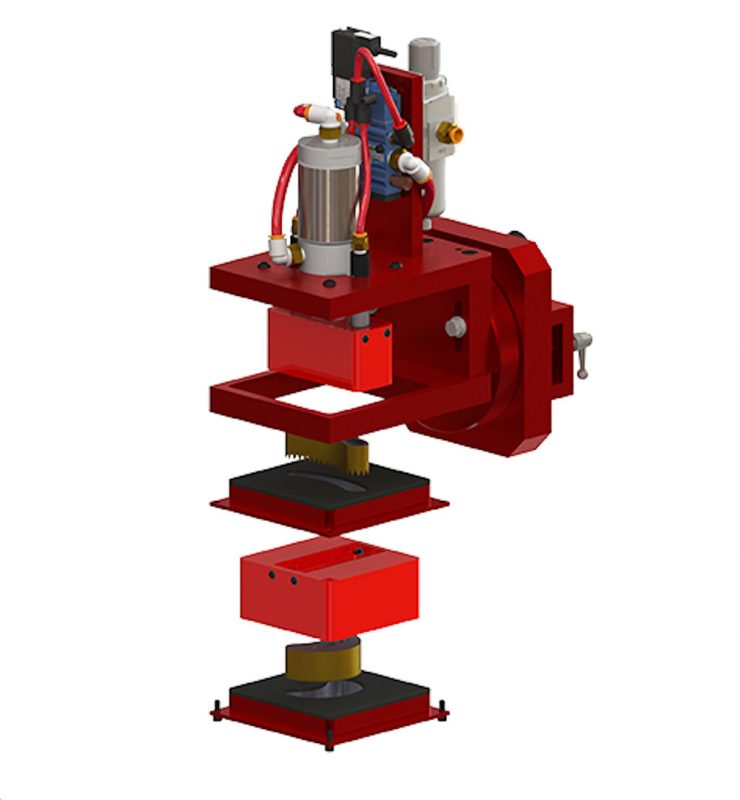

Pearl offers a Pivot Mount Assembly, allowing operators to rotate the unit 180°  for easier access to the die plate, screws and punch. When changing punches, this gives the operator improved visibility, increased efficiency and safer changeovers.  An easy-to-use location pin rotates the unit in 90-degree increments.

Download Product Sheet

Engineered to Your Needs:

  • Available in any shape or size to meet your exact specifications. Punch and die insert sold separately.
  • Standard Voltages include: 110 VAC, 220 VAC, 24 VDC and 24 VAC.
  • Orient punches MD or TD by rotating inserts 90º.
  • Side rail and cross rail versions available.
  • Optional pivot mount assembly.
  • Metric units available with metric hardware and mounts.

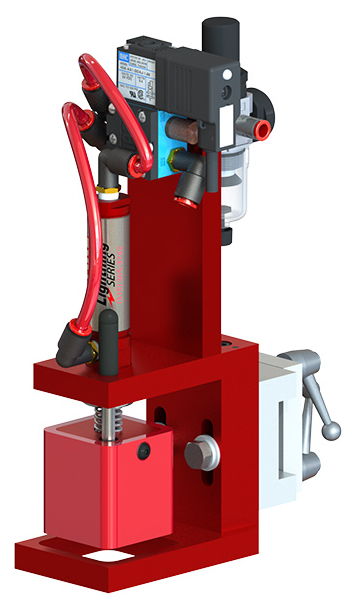

Flex 1

Ideal for pin vent, round hole, osha, and small custom shaped punches.  Flexible for punch sizes up to a maximum of 1.375”.  n cross rail as close as 2.5” center-to-center.  Throat depth for side rail mount is 2”.

Download Data Sheet

Flex 2

Ideal for round, square, and custom shaped punches. Flexible for punch sizes up to a maximum of 2.8125”. On cross rail as close as 4.0” center-to-center. Throat depth for side rail mount is 3″.

Download Data Sheet

Flex 3

Ideal for handle hole punches of all shapes and sizes. Single web clamp for all our standard HHO punches. Flexible for punch sizes up to a maximum of 3.5”. On cross rail as close as 5.5” center-to-center. Throat depth for side rail mount is 3.875”.

Download Data Sheet

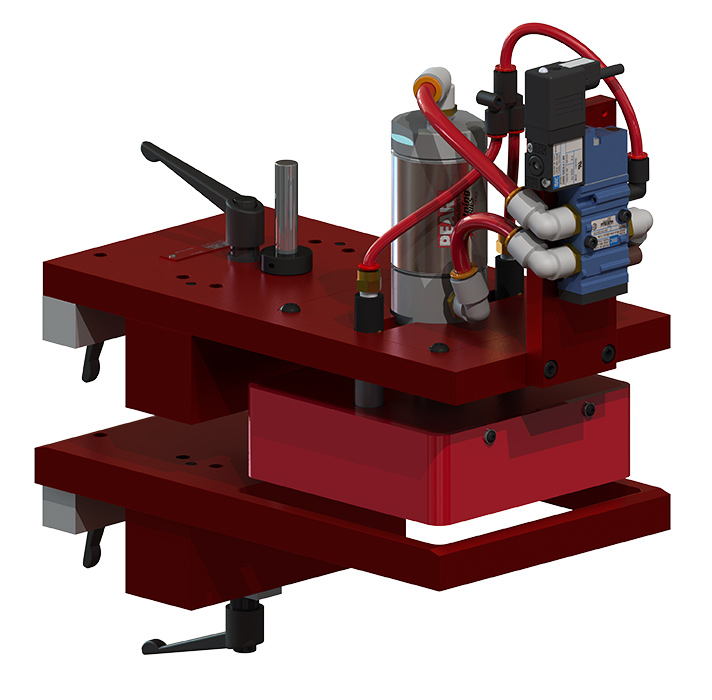

Flex 4

Ideal for v-notch, round, and custom shaped punches. Handles big punches with ease. Flexible for punch sizes up to a maximum of 5.0”. On cross rail as close as 7.0” center-to-center. Throat depth for side rail mount is 4.25”.

Download Data Sheet

Flex 5

Takes v-notch, round, and custom shaped punches. Handles big punches with ease. On cross rail as close as 13” center-to-center. Throat depth for side rail mount is 6.75”. Hinged flip-top feature for safety. Spring loaded web clamp and slug blow-thru.

Download Data Sheet
