Wicket Hub & Arm

Wear Resistant Pearl-Grip Arms

Pearl’s Wicket Hub and Arms are designed for wicketed bags, typically for bakery or hygiene applications. Hubs and arms function on the output side of a wicket bag machine where they rotate, lift, and convey bags from the machine to a wicket bag carousel to stack.

The unit can be retrofitted on any OEM wicket bag machine. They are available in various arm lengths and configurations. Pearl’s hubs have wear plates, which don’t require machining for gapping. Our tool-less arm design makes for easy removal as the end caps snap in and out, lessening maintenance and downtime. All arms have a special grip coating for better holding of the bags.

Reduce Surface Contact

Low Friction Technology

Low Maintenance Design

Wear-Resistant!

Quick and easy to clean
Tool-less arm removal
End cap is leak-proof as well as tool-less
Textured grip integrated into surface of the arms
Will not peel or warp with heat or solvent baths
Will not chip upon impact
Continuous motion
Standard 6 and 8 arm hub sets in stock
Custom hubs or arms made to order

Wicket hub

PVH-S8-WR

Vacuum Hub Set – Aluminum
8” diameter
Includes (2) vacuum halves
(2) rotary halves
(2) drive rings
(16) wear resistant Pearl-Grip Arms
Removable end caps
Replaceable bearing surfaces

view datasheet

Wicket hub

PVH-S6-WR

Vacuum Hub Set – Aluminum
8” diameter
Includes (2) vacuum halves
(2) rotary halves
(2) drive rings
(12) wear resistant Pearl-Grip Arms
Removable end caps
Replaceable bearing surfaces

view datasheet

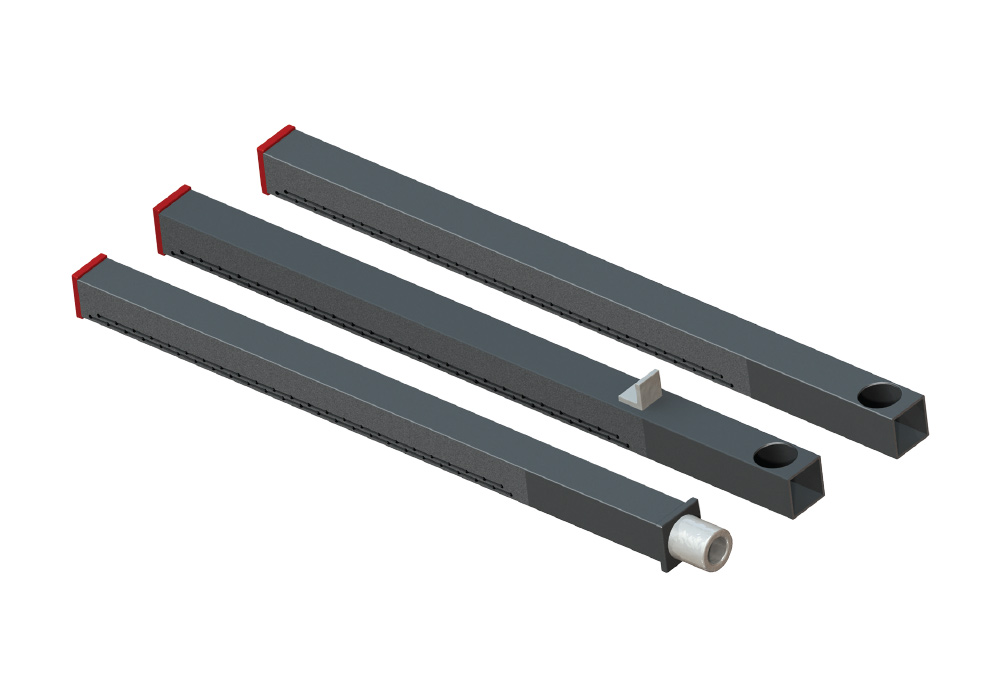

Wicket arm

PVH-PAWR

1” x 1” square tubing with wear-resistant coating
14-9/16” exposed from hub (16-1/4” total overall length)
Tool-less arm removal
End cap is leak-proof as well as tool-less
Textured grip integrated into surface of the arms
Will not peel or warp with heat or solvent baths
Will not chip upon impact

view datasheet

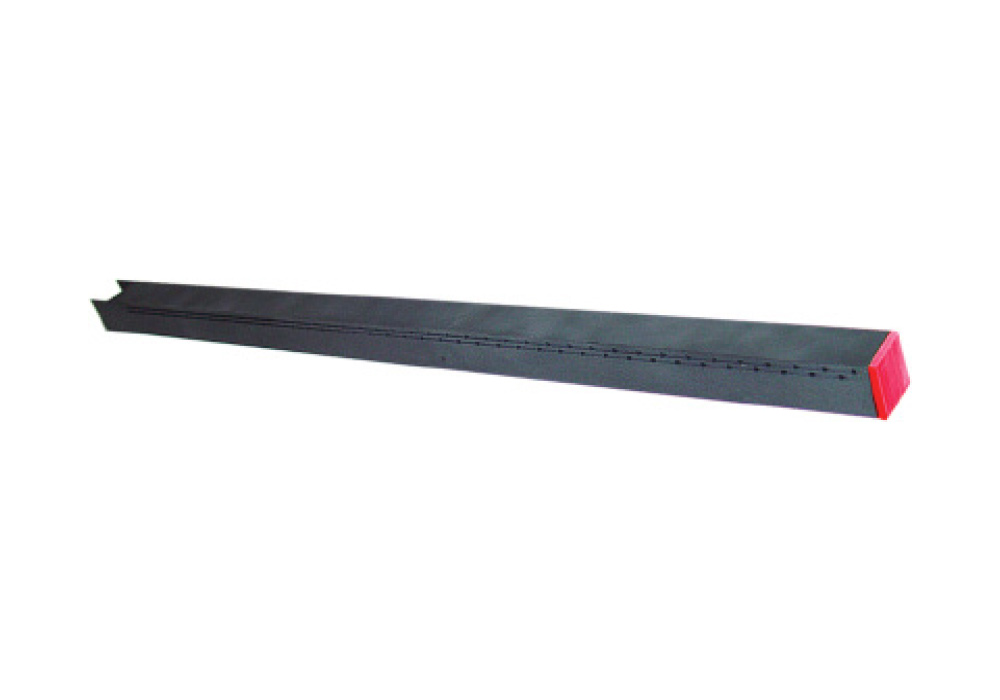

retrofit arms

Low friction technology
High water resistance
Utilizes replaceable wearstrips
Reduces the amount of surface contact by over 75%
Indexible so that different surfaces can be applied in seconds

view datasheet
